Generators play a crucial role in modern infrastructure. They maintain the gear and lights of power plants and industrial buildings. However, failures in key components—especially the stator and rotor—can result in costly downtime and equipment damage.
This article examines the causes of generator stator and rotor failures, explores preventive strategies, and highlights the latest technological solutions to ensure optimal performance and reliability.
Understanding the Importance of Stator and Rotor

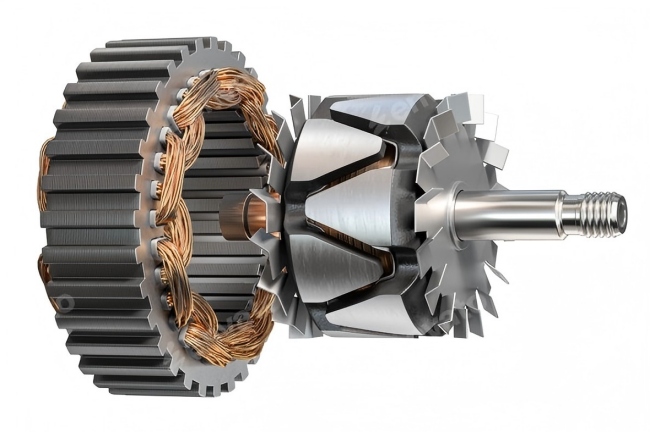

At the heart of every generator lies a simple yet powerful concept: electromagnetic induction. This principle is made real through the interplay between two primary components—the stator and the rotor.
- The generator’s stationary component is called the stator. It houses the armature windings in AC generators, producing electricity when the magnetic field interacts with them.
- The component that rotates is called the rotor. It has an electromagnet or permanent magnet that creates the magnetic field required for induction.
When either component fails, the generator’s ability to convert mechanical energy into electrical energy is severely compromised.
Common Causes of Generator Stator Failures
Stator failures are particularly dangerous because they often develop slowly and are hard to detect until significant damage has occurred. Key causes include:
Insulation Breakdown
Thermal stress, electrical overloads, or aging can degrade insulation materials. Once insulation fails, phase-to-phase or phase-to-ground short circuits can occur, leading to severe damage.
Contamination
Dust, moisture, oil, or chemicals can infiltrate the stator housing, creating conductive paths that result in short circuits or corrosion. High-humidity environments are especially risky.
Thermal Overload
Operating beyond design temperature limits can accelerate insulation aging and create hot spots. This often stems from inadequate cooling or excessive load.
Vibration and Mechanical Stress
Misalignment, bearing failure, or loose mounting can lead to physical movement in the stator windings, eventually causing insulation wear or conductor fatigue.
Electrical Transients
Switching surges, lightning strikes, or fault conditions can introduce high-voltage spikes, potentially puncturing insulation and initiating arcing.
Common Causes of Generator Rotor Failures
Rotor failures, while less frequent than stator failures, are often more dramatic. They can include:
Rotor Winding Failures
These typically result from insulation degradation or poor manufacturing quality. Vibration, centrifugal force, and thermal cycling exacerbate the problem over time.
Magnetic Imbalance
Loss of magnetism or uneven magnetic fields caused by cracked rotor poles or incorrect excitation can reduce performance and increase heating.
Shaft Cracking or Fatigue
Excessive torque, improper start-up sequences, or design flaws may cause cracking, which can propagate and lead to catastrophic failure.
Rotor Bowing or Deformation
Uneven thermal expansion or mechanical stress can cause the rotor to deform, leading to unbalanced rotation and mechanical rubbing against the stator.
Cooling System Failure
Insufficient cooling can cause overheating of rotor windings and core components, leading to thermal degradation and reduced mechanical strength.
Early Detection and Diagnostic Techniques
Early detection is vital in preventing major failures. Modern diagnostics help identify signs of deterioration before they cause serious damage. Some widely used techniques include:
- Partial Discharge (PD) Testing: Detects insulation defects through measurement of electrical discharges.
- Infrared Thermography: Identifies hot spots in the stator and rotor windings without invasive inspection.
- Vibration Analysis: Tracks changes in vibration patterns that may indicate mechanical imbalance or rotor shaft issues.
- Surge Testing: Assesses the condition of stator winding insulation by applying high-voltage pulses.
- Flux Probe Monitoring: Used to identify rotor winding short circuits by analyzing magnetic flux patterns.
Preventive Maintenance Practices
Preventing failures requires a structured maintenance program focused on both mechanical and electrical integrity. Best practices include:
Regular Insulation Testing
Periodic insulation resistance and polarization index testing can help detect aging insulation early.
Cleanliness and Environmental Controls
Maintaining a clean and dry environment around the generator minimizes contamination risks. Using air filters and dehumidifiers in high-humidity areas helps.
Proper Cooling System Maintenance
Cooling fans, radiators, and heat exchangers must be regularly inspected for clogging or malfunction. Thermal sensors should be calibrated.
Alignment and Balancing
Regular checks for shaft alignment and rotor balance prevent undue vibration and mechanical stress.
Routine Rotor Checks
Field winding resistance and impedance should be periodically measured. Any deviation from baseline values warrants further investigation.
Design Improvements and Material Advances
Modern advancements in design and materials have significantly improved the durability of stator and rotor components.
High-Grade Insulation Materials
New materials like mica-based and epoxy resin insulation systems offer better resistance to heat and electrical stress, extending service life.
Improved Lamination Technologies
Laminated core designs using silicon steel reduce eddy current losses and enhance thermal efficiency, especially in stator cores.
Vacuum Pressure Impregnation (VPI)
This process saturates windings with resin under vacuum and pressure, filling all voids and enhancing dielectric strength and mechanical rigidity.
Advanced Cooling Designs
Closed-loop air or hydrogen cooling systems allow better heat dissipation in large generators, protecting both stator and rotor windings from overheating.
Smart Monitoring Systems
Integrated condition monitoring solutions using IoT and AI analyze data in real time to provide predictive insights, reducing the need for unscheduled maintenance.
Case Studies: Real-World Failures and Resolutions
Case 1: Stator Winding Failure in a Thermal Power Plant
A 500 MW generator experienced a sudden shutdown. Investigation revealed contamination and insulation degradation in the stator windings. The root cause was traced to a failed air filter system, allowing fine coal dust inside. Solution included replacing insulation, upgrading filters, and installing environmental sensors.
Case 2: Rotor Cracking in a Hydro Generator
Routine vibration analysis in a 300 MW hydro plant revealed growing imbalance. Further inspection discovered a fatigue crack on the rotor shaft due to misalignment and high torque load cycles. The rotor was replaced, and an automated alignment system was introduced.
Case 3: Magnetic Field Distortion in Wind Generator
A 5 MW wind turbine experienced reduced power output. Testing showed uneven flux distribution due to demagnetized rotor poles. The rotor was refurbished with new magnets and rebalanced. Output efficiency improved by 12%.
Industry Standards and Testing Protocols
Generator operating is guaranteed to be safe and consistent when international standards are followed. Key standards include:
- IEEE Std 43: Insulation resistance testing.
- IEEE Std 522: Handbook for form-wound coil turn insulation testing.
- IEC 60034: General specifications for rotating electrical machines.
- NEMA MG 1: Motor and generator standard, covering testing procedures and temperature classifications.
Manufacturers and maintenance professionals must ensure compliance during both design and operation stages.
Future Trends in Generator Reliability
The future of generator reliability lies in predictive maintenance and digital transformation. Emerging trends include:
- Digital Twins: Virtual replicas of generators simulate operational behavior and predict failures.
- AI-Based Diagnostics: Machine learning analyzes large datasets from sensors to detect patterns invisible to the human eye.
- Remote Monitoring Platforms: Cloud-based platforms allow real-time surveillance, reducing the need for on-site inspections.
- Additive Manufacturing (3D Printing): Used for custom rotor and stator parts, reducing lead times for critical components.
- Eco-Friendly Cooling Solutions: Non-toxic coolants and advanced fan blade designs are helping reduce energy consumption.
Final Thoughts
Although they might be disastrous, generator stator and rotor failures are avoidable.
With modern materials, smart monitoring, and proactive maintenance, organizations can reduce risk and ensure long-term reliability of their power generation systems. Understanding the causes and staying ahead with innovative solutions is the key to operational success in an increasingly electrified world.
