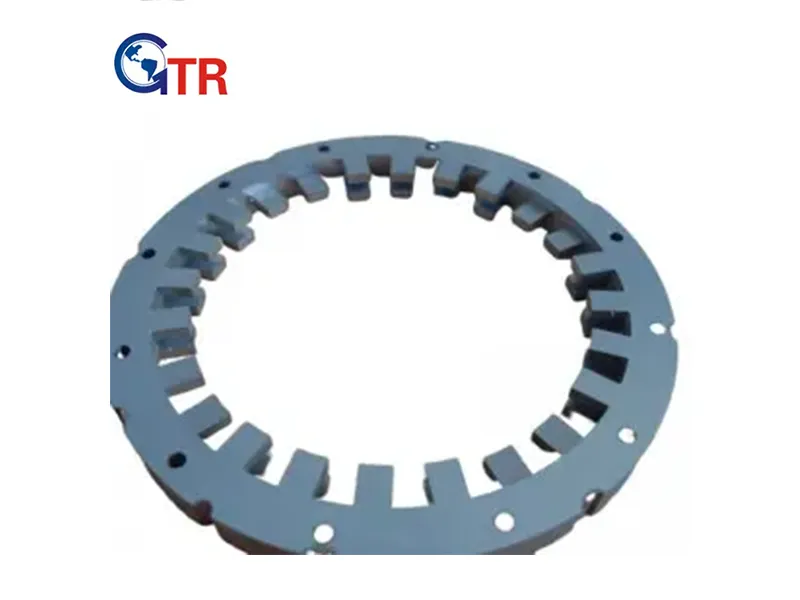

Switch Reluctance Motor Stator Stack
- Size Range: Available stator outer diameters from 80 mm to 400 mm.
- High Efficiency: Optimized magnetic flux path reduces core loss and enhances torque output.
- Energy Saving: Excellent electromagnetic performance ensures lower power consumption.
- Stable Operation: Excellent structural rigidity minimizes vibration and noise during high-speed operation.
- Cost-Effective: Simplified design and easy manufacturability lower overall production cost.
Technical Specifications
| Parameter | Specification |
| Material | High-grade Silicon Steel Sheet |
| Manufacturing Process | Precision Stamping and Stacking |
| Size Range | 80mm – 400mm (Outer Diameter) |
| Motor Type | Switch Reluctance Motor (SRM) |
| Lamination Thickness | 0.2mm – 0.5mm |
| Core Loss | Low-loss Magnetic Material |
| Coating | Insulation or Anti-rust Coating Optional |
| Certification | ISO9001, IATF16949 |
| OEM Availability | Yes |
Customization & OEM Service
- Custom stator diameters and lamination thickness available.
- Compatible with various reluctance motor designs and pole configurations.
- Supports prototype, low-volume, and mass production.
- Options for laser cutting, high-speed stamping, and compound die forming.
- Optional anti-rust surface treatment and insulating coating.
- On request, custom branding, labeling, and packaging are available.
Application Fields
- Industrial Automation Systems: For high-torque, energy-efficient machinery.
- Electric Vehicles: Ideal for cost-effective, magnet-free drive systems.
- Pumps and Compressors: Delivers high torque with minimal maintenance.
- Textile and Printing Equipment: Ensures stable operation and low vibration.
- Renewable Energy Systems: Suitable for wind or hybrid drive motors.
