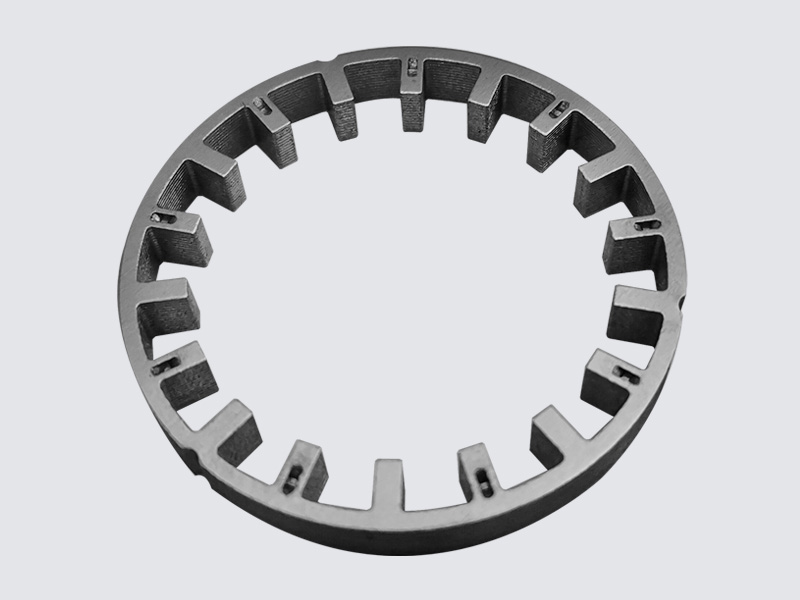

Stepper Motor Stator Core
- Size Range: Custom outer diameters 20–180 mm; stack height adjustable per design.
- High Tooth Precision: Tight slot/tooth tolerances stabilize flux and step accuracy.
- Low Loss: Smooth edges and optimized stack factor reduce eddy/hysteresis losses.
- Detent Torque Control: Tooth shaping/possible skewing options minimize torque ripple.
- Certified Quality: Built under ISO9001 & IATF16949 for reliable supply.
Technical Specifications
| Parameter | Specification |
| Outer Diameter (OD) | 20–180 mm (Customizable) |
| Inner Diameter (ID) | Per Shaft/Bearing Design |
| Stack Height | Per Torque Requirement |
| Lamination Thickness | 0.10–0.50 mm |
| Burr Height (typ.) | ≤0.02–0.03 mm |
| Slot/Tooth Tolerance | Per Drawing: CPK Targets on Request |
| Assembly | Interlock / Bonded / Welded |
| Marking | Laser Code / Batch ID |
| Compliance | ISO9001, IATF16949 |
Customization & OEM Service
- Tailored stator lamination design.
- Custom slot geometry and pole configuration.
- Material thickness and coating adjustment.
- Prototype sampling and small-batch support.
- Full OEM/ODM branding and packaging service.
Application Fields
- Precision motion axes (CNC, 3D printers)
- Robotics/AGV actuators and positioning stages
- Textile/packaging feeders and valves
- Medical devices and lab automation
