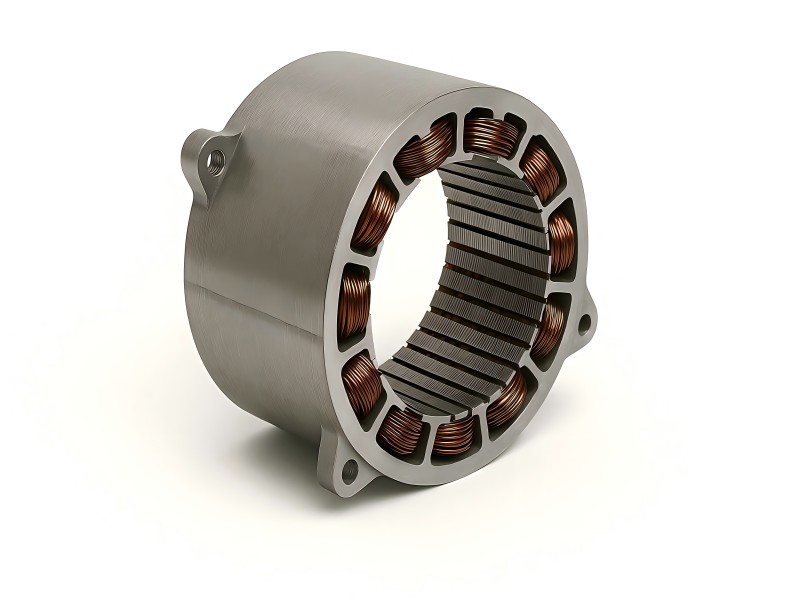

Stator of Single Phase Induction Motor
- Material Options: Non-oriented silicon steel, 0.3–0.5 mm lamination thickness.
- Outer Diameter Range: 50–400 mm; stack height customizable.
- Slot Design: Distributed or concentric slots optimized for balanced flux distribution.
- Winding Configuration: Main and auxiliary windings form a phase-shifted magnetic field for startup torque.
Technical Specifications
| Parameter | Specification |
| Material | Non-oriented Silicon Steel / Iron Alloy |
| Lamination Thickness | 0.3 – 0.5 mm |
| Outer Diameter | 50–400 mm |
| Stack Height | 10–300 mm |
| Slot Type | Distributed / Concentric / Skewed |
| Winding Type | Main + Auxiliary (Start & Run) |
| Insulation Coating | Class B/F/H |
| Core Loss | ≤ 1.5 W/kg @ 1.5 T, 50 Hz |
| Assembly Method | Interlocking / Riveting / Welding |
| Applications | Single-phase Induction Motors (Domestic & Industrial) |
Customization & OEM Service
- Customization & OEM Service
- Custom stator diameter, slot number, and skew angle design.
- Support for aluminum or copper windings and wire types.
- Mold and die manufacturing based on customer drawings.
- Sample prototype verification before mass production.
- Custom insulation coatings and varnish systems.
- OEM branding and export packaging available.
Application Fields
- Household and industrial fans
- Water and air pumps
- Air conditioners and compressors
- Washing machines and dryers
- Agricultural equipment motors
- Small automation systems
