Electric vehicles, collaborative robots, and industrial drives are reshaping modern industry, and all depend on high-performance electric motors. At the core of these motors are stator and rotor lamination stacks, which define efficiency, torque, speed capability, thermal performance, and long-term reliability.
As a stator and rotor manufacturer, you know these stacks are not interchangeable — a design for a 1500-rpm industrial motor cannot withstand a 20,000-rpm EV cycle, and robotics requires far lower cogging and higher precision than cost-focused industrial systems.
As OEMs seek higher efficiency, lower loss, greater power density, and quieter operation, the need for application-specific lamination stacks has never been greater. This article compares the distinct requirements of EV, robotics, and industrial drive lamination stacks.
Core Performance Drivers Shared Across All Markets
Despite their varied operating environments and end-use characteristics, EV traction motors, robotic servo motors, and industrial drive motors share several fundamental requirements. These shared performance drivers establish the baseline expectations for all stator and rotor lamination stacks.
Electromagnetic Efficiency
All applications demand laminations with:
- Low core loss at relevant operating frequencies
- High magnetic permeability
- Optimal flux distribution
- Reduced eddy current losses
Material grade selection (from standard 50AH series to high-grade 20UH or 15UH EV steel) becomes a critical contributor.
Mechanical Integrity and Dimensional Accuracy
Lamination stacks must maintain strict tolerances in:
- ID/OD geometry
- Stack parallelism
- Burr height
- Runout
- Slot shape uniformity
- Skew accuracy (if applied)
High mechanical integrity reduces vibration, improves NVH, and prevents premature failure at high rpm.
Thermal Behavior and Cooling Compatibility
As power density increases, thermal stress becomes a deciding factor.
A high-quality stack must:
- Be compatible with forced air or liquid cooling
- Support high slot fill factor without overheating
- Minimize hysteresis loss at high temperature
Manufacturability and Repeatability
Across markets, OEMs expect:
- Consistent stacking (adhesive, welding, riveting, interlocking)
- Precise insulation coating
- Low burr stamping
- Compatibility with automated assembly lines
Reliability and Lifecycle Expectations
No matter the application, stacks are expected to:
- Maintain structural and magnetic integrity over long lifetimes
- Resist fatigue at varying rpm profiles
- Handle thermal cycling without delamination or warpage
These shared requirements constitute the engineering foundation — but the priorities and tolerances differ drastically by sector, as explored next.

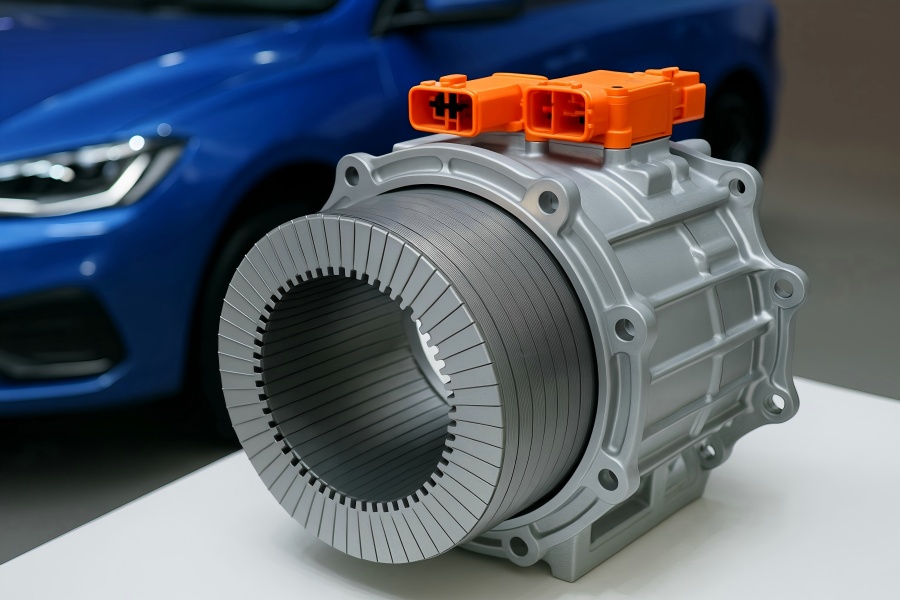

EV Traction Motors: Lamination Stack Requirements
Electric vehicle motors operate in an environment defined by extreme mechanical, electrical, and thermal load cycles. They require the most advanced lamination stack solutions among the three markets.
Operating Profile and Motor Types
EV traction motors operate at:
- High RPM (8,000–20,000+)
- High torque and current density
- Frequent load transitions
- Continuous regenerative braking cycles
Common motor architectures include:
- PMSM (Permanent Magnet Synchronous Motor)
- IPM (Interior Permanent Magnet Motor)
- Induction motor (Tesla-style designs)
- Switched reluctance motors (emerging in cost-sensitive segments)
These motors demand exceptional lamination performance due to constant acceleration, wide speed ranges, and thermal fluctuations.
Key Stack Design Priorities for EVs
Ultra-Low Core Loss at High Frequencies
EV motors operate under PWM inverters with switching frequencies of 8–20 kHz.
This requires:
- Thin-gauge laminations (0.27 mm → 0.1 mm)
- High-silicon, high-permeability electrical steel
- Precise insulation coatings
Even a small reduction in core loss can significantly extend driving range and improve efficiency.
High Mechanical Strength and Burst Margin
The rotor lamination structure must withstand:
- Tensile stress from high rpm
- Centrifugal forces
- Magnetic pull and torque ripple
- Sleeve compression (carbon fiber or Inconel)
Burst margin engineering is critical to safety.
NVH Optimization
EV customers demand silent operation. Stack design must minimize:
- Cogging torque
- Electromagnetic noise
- Mechanical vibration
- Tooth saturation
Slot/pole combinations and skew designs are carefully selected to avoid harmonic excitation.
High Slot Fill and Thermal Robustness
High slot fill improves power density but also increases heat generation. Lamination stacks must remain dimensionally stable even at elevated temperatures.
Manufacturing Implications in EV Applications
EV-grade lamination manufacturing is defined by:
- Tight dimensional tolerances (±0.01–0.02 mm)
- High-speed progressive stamping or fine laser cutting
- Precision stack bonding or welding
- 100% traceability and PPAP compliance
- High production volumes (hundreds of thousands to millions)
OEM expectations in EV segments exceed traditional industrial motor requirements by a wide margin.

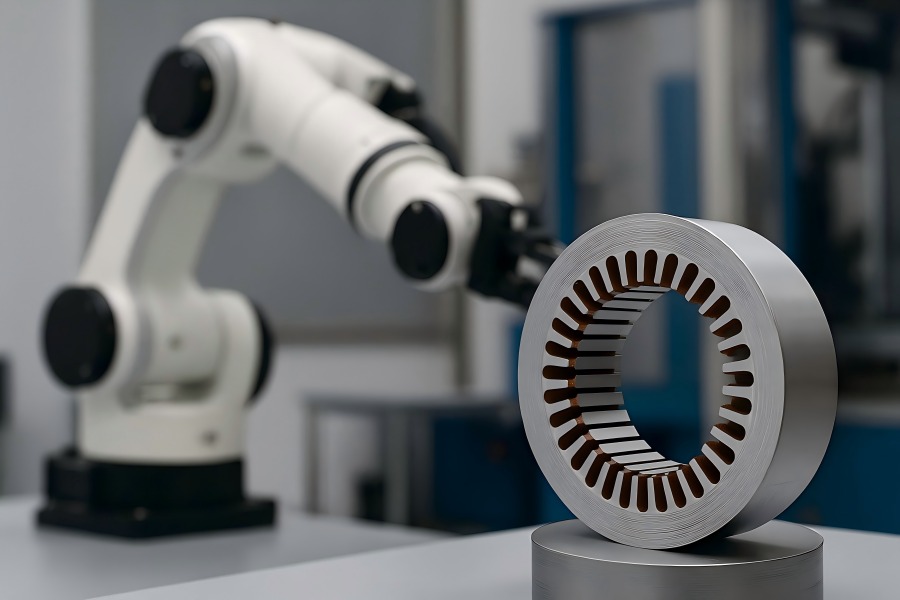

Robotics Motors: Lamination Stack Requirements
Robotic applications — including industrial robots, cobots, exoskeletons, and high-precision servos.
systems — require motors optimized for motion accuracy rather than brute power.
Operating Profile and Motor Types
Robotics motors operate with:
- Frequent start-stop cycles
- Small angular motions
- High precision positioning
- Low-speed torque output
- Minimal torque ripple
Common motor types include:
- Frameless torque motor
- Servo motors
- High-pole-count PMSM
- Direct-drive motors
Key Design Priorities for Robotics Stator Lamination Stacks
Ultra-Low Cogging Torque
Smooth motion control requires extremely low cogging, achieved through:
- Tooth chamfering
- Skewed laminations
- Fractional-slot designs
- Optimized slot/pole combinations
Robotics tolerates almost no jerky movement, making lamination precision vital.
High Torque Density in Compact Form
To keep robotic arms small, lightweight, and agile, motors must deliver maximum torque in minimal volume.
This requires:
- High magnetic permeability
- Optimized back-EMF linearity
- High slot fill without excessive heating
Quiet Electromagnetic Operation
Robotics involves human–machine collaboration, so noise reduction is a top priority.
Stack design must suppress:
- Electromagnetic hum
- Harmonic distortion
- Torque ripple
Dimensional Precision for Small-Scale Laminations
Robotics motors often have very small stators and fine teeth, requiring:
- High punching precision
- Tight control of burr height
- Consistent insulation coating
Manufacturing Implications in Robotics
Robotics lamination production characteristics include:
- Small to medium batch sizes
- High customization per OEM
- Prototype-friendly production (laser cutting for early iterations)
- Ultra-high precision over speed
- Strict quality inspection for micro geometries
Robotics demands precision above all else — often more than EVs and far more than industrial drives.
Industrial Drive Motors: Lamination Stack Requirements
Industrial drives include motors used in pumps, compressors, conveyors, fans, and general manufacturing machinery. Their requirements differ significantly from EVs and robotics.
Operating Profile and Motor Types
Industrial motors typically run:
- At lower to moderate speeds (1500–6000 rpm)
- For long duty cycles
- Under constant or predictable loads
- With limited torque fluctuations
Common motor types:
- Induction motors (most common)
- Synchronous motors
- PM motors for IE4/IE5 efficiency
- Variable frequency drive (VFD) controlled motors
Key Design Priorities for Industrial Stacks
Cost-Optimized Efficiency
Industrial equipment must balance cost with efficiency.
Lamination stacks must be efficient but economical:
- Standard high-grade silicon steel (e.g., 50 series)
- 0.35–0.50 mm lamination thickness
- Noise and ripple control, but not at EV or robotics levels
Durability Over Maximum Power Density
Industrial environments value:
- Long lifespan
- Heat tolerance
- Mechanical robustness
- Resistance to contaminants
Power density demands are lower than EV or robotics motors.
Thermal Stability for Continuous Operation
Industrial motors may run 24/7 for years.
Lamination stacks must endure:
- Constant heat exposure
- Ambient contaminants (dust, oil, moisture)
- VFD harmonics
Standardization and Serviceability
Industrial motors often follow industry standards for:
- Stack dimensions
- Tolerances
- Slot configurations
This allows easier replacement and repair.
Manufacturing Implications in Industry
Industrial lamination stack manufacturing emphasizes:
- High-volume mass production
- Cost reduction
- Reliable stamping over ultra-thin laminations
- Standardized designs over customization
- Repeatability over extreme precision
Industrial customers value reliability and durability more than extreme efficiency or torque ripple reduction.
Comparison Table: EV vs Robotics vs Industrial Drives
The following table summarizes the differences across the three applications:
Table 1 — Comparative Engineering Requirements
| Feature / Requirement | EV Traction Motors | Robotics Motors | Industrial Drive Motors |
| Operating Speed | Very high (8k–20k+ rpm) | Low to moderate, high precision | Low to moderate, steady |
| Torque Ripple Sensitivity | High | Extremely high | Moderate |
| Core Loss Requirements | Ultra-low | Low–medium | Medium |
| Lamination Thickness | 0.1–0.27 mm | 0.2–0.35 mm | 0.35–0.5 mm |
| Noise / NVH Demands | Very strict | Most strict | Moderate |
| Dimensional Tolerance | ±0.01–0.02 mm | ±0.005–0.015 mm | ±0.03–0.05 mm |
| Material Grade | Premium Si-steel | High-grade Si-steel | General-purpose to mid-grade |
| Production Style | High volume | Small batch | High volume |
| Cost Pressure | High | Medium | Very high |
| Customization | Medium | High | Low |
A more detailed breakdown of lamination design considerations is shown below:
Table 2 — Stator/Rotor Stack Design Priorities
| Design Aspect | EV | Robotics | Industrial |
| Cogging Reduction | Important | Critical | Optional |
| Thermal Load | Extremely high | Moderate | Moderate–high |
| Vibration Control | Very strict | Critical | Standard |
| Burst Strength | Critical | Moderate | Low |
| Slot Fill | Very high | High | Moderate |
| Harmonic Control | Strict | Most strict | Moderate |
What These Differences Mean for Stator & Rotor Stack Manufacturing
Because each application segment demands different lamination stack characteristics, your manufacturing process must align with OEM expectations.
Tooling Strategy Adjustments
EV motors require:
- High-speed progressive stamping dies
- Ultra-thin silicon steel
- Precision tolerances over millions of cycles
Robotics motors rely on:
- Micro-precision stamping
- Prototype flexibility (laser + stamping mix)
- Custom slot geometries
Industrial drives use:
- Cost-optimized stamping tools
- Standardized geometries
- Lower tooling maintenance intensity
Process Selection: Stamping vs. Laser Cutting
| Process | Best For | Advantages | Limitations |
| High-Speed Stamping | EV + Industrial | High volume, low cost/unit | Not ideal for prototypes |
| Laser Cutting | Robotics + Prototyping | Flexible, precise | Higher core loss, lower volume speed |
Insulation Coating and Bonding Methods
Depending on requirements:
- EVs: advanced insulation coatings, adhesive bonding, or precision welding
- Robotics: thin coatings to minimize micro-losses
- Industrial: standard coatings suitable for general-purpose motors
Stack Assembly Methods
Assembly styles vary by application:
| Stack Method | EV | Robotics | Industrial |
| Interlocking | ✓ | ✓ | ✓✓✓ |
| Adhesive Bonding | ✓✓✓ | ✓✓ | ✓ |
| TIG/MIG Welding | ✓✓ | ✓ | ✓✓ |
| Riveting | ✓ | ✓ | ✓✓✓ |
(More checkmarks = stronger preference)
Quality Assurance Focus Areas
EV motors:
- Burr height control
- Tight dimensional tolerances
- Ultrasonic/weld integrity
- Traceability (barcode, QR code)
- Rotor burst testing
Robotics:
- Slot accuracy
- Lamination flatness
- Tooth geometry consistency
- Low torque ripple validation
Industrial drives:
- Cost-effective QC
- Standardized testing
- Basic harmonic and loss measurements
Each application segment demands a different level of precision, quality assurance, and process engineering.
Conclusion: Guiding OEMs Toward the Right Lamination Stack Solutions
Stator and rotor lamination stacks shape motor performance in EVs, robotics, and industrial drives, but each market prioritizes different requirements. EV motors demand high mechanical strength, ultra-low core loss, and excellent NVH control for high-speed operation. Robotics motors require precision, smooth torque, quiet motion, and compact high-torque designs. Industrial drives focus on durability, cost efficiency, and reliable long-term operation.
For OEMs, recognizing these differences is essential. Your strength as a stator and rotor manufacturer is the ability to adapt materials, processes, tolerances, and stack assembly methods to each application — offering EV-grade high-speed cores, robotics-grade precision cores, and industrial-grade economical cores. Aligning your capabilities with these needs positions your company as a comprehensive motor-core solutions partner for mobility, automation, and industrial efficiency.
