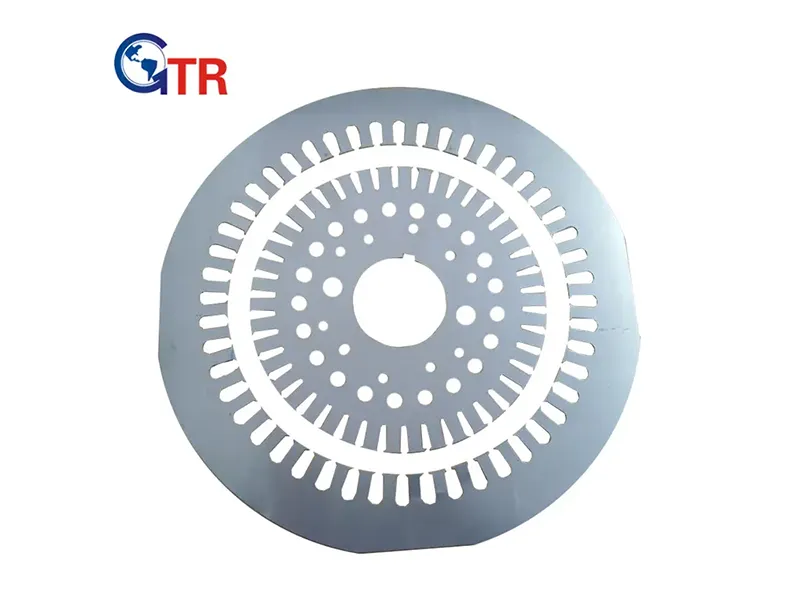

Stator and Rotor Lamination for Diesel Generator
- High Magnetic Efficiency: Optimized silicon steel sheets minimize eddy current loss.
- Dimensional Precision: Tight tolerances ensure stable magnetic flux distribution.
- Versatile Application: Suitable for DC & AC motors used in diesel generator systems.
- Custom Design: Support for compound, high-speed, and single-slot punching dies.
- Flexible Manufacturing: Different tonnage presses to meet specific generator models.
- Corrosion Protection: Insulation coatings (C3, C5, C6) ensure long-term durability.
Technical Specifications
| Parameter | Specification |
| Material | Silicon Steel Sheet |
| Outer Diameter (Stator) | Custom range (mm) |
| Outer Diameter (Rotor) | Custom range (mm) |
| Thickness per Lamination | 0.35–0.5 mm |
| Stack Height | Up to 400 mm |
| Punching Type | Compound / High-Speed / Single-Slot |
| Application | Diesel Generator Alternator |
| Certification | ISO9001, IATF16949 |
| Brand | OEM & ODM |
Customization & OEM/ODM Service
- Custom dimensions and punching die designs per generator model.
- OEM & ODM support with co-engineering and prototyping services.
- Quick mold development by the in-house R&D team.
- Compatible with AC/DC motor generators across industrial and commercial applications.
Application Fields
- Diesel generator sets for industrial facilities and construction sites.
- Backup power for hospitals, telecommunications, and data centers.
- Marine and transportation generator systems.
- Hydraulic power units and elevator backup systems.
- New energy hybrid systems using diesel-electric integration.
