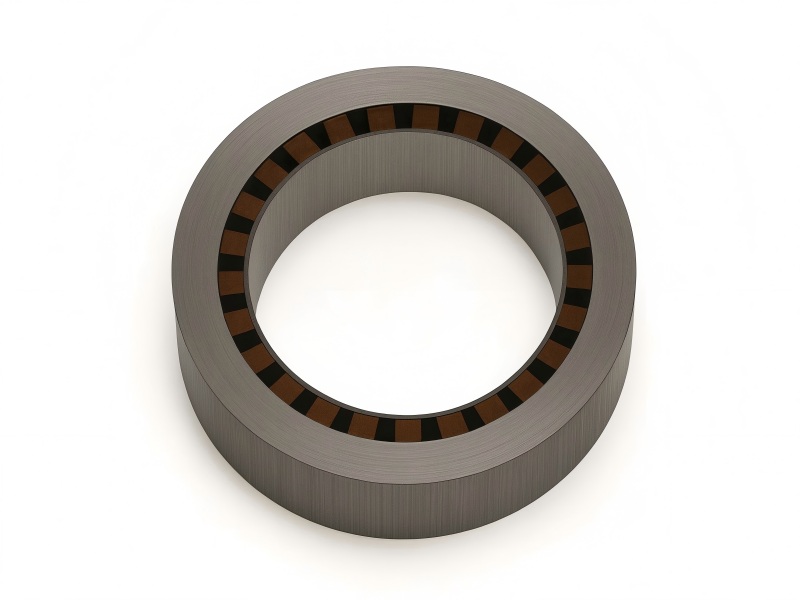

Slotless Stator
- Zero Cogging Torque: Smooth magnetic air gap eliminates detent force for uninterrupted motion.
- Low Inductance: Enables fast current response in servo and BLDC systems.
- Compact and Lightweight: Simplified structure ideal for miniaturized high-speed motors.
- Excellent Thermal Dissipation: Short magnetic path and open winding structure enhance cooling.
- Low Iron Loss: ≤ 1.8 W/kg @ 50 Hz for high-efficiency operation.
- Flexible Coil Design: Compatible with pre-formed, litz, or flat wire winding.
Technical Specifications
| Parameter | Specification |
| Material | Non-oriented Silicon Steel / Cobalt Alloy |
| Lamination Thickness | 0.1 – 0.35 mm |
| Outer Diameter | 10 – 400 mm |
| Stack Height | 10 – 300 mm |
| Inductance | ≤ 10% of slotted equivalent |
| Core Loss | ≤ 1.8 W/kg @ 50 Hz |
| Max Speed | Up to 60,000 RPM |
| Operating Temperature | –40 °C to +200 °C |
| Coil Type | Pre-formed / Embedded / Litz Wire |
| Applications | Servo Motors / Robotics / Aerospace / Medical / Optical Equipment |
Customization & OEM Service
- Customize stator inner/outer diameter and stack height.
- Select core material grade (silicon steel, cobalt alloy, amorphous alloy).
- Design coil type: litz, flat, or solid wire.
- Adjust inductance for target motor control response.
- Provide winding insulation class and coating color.
- Support prototyping and small-batch testing before mass production.
- Offer OEM labeling and export packaging.
Application Fields
- High-precision servo and BLDC motors
- Medical imaging, surgical, and dental devices
- Aerospace actuators and UAV drives
- Robotic joints and collaborative automation arms
- Optical scanners and compact high-speed fans
