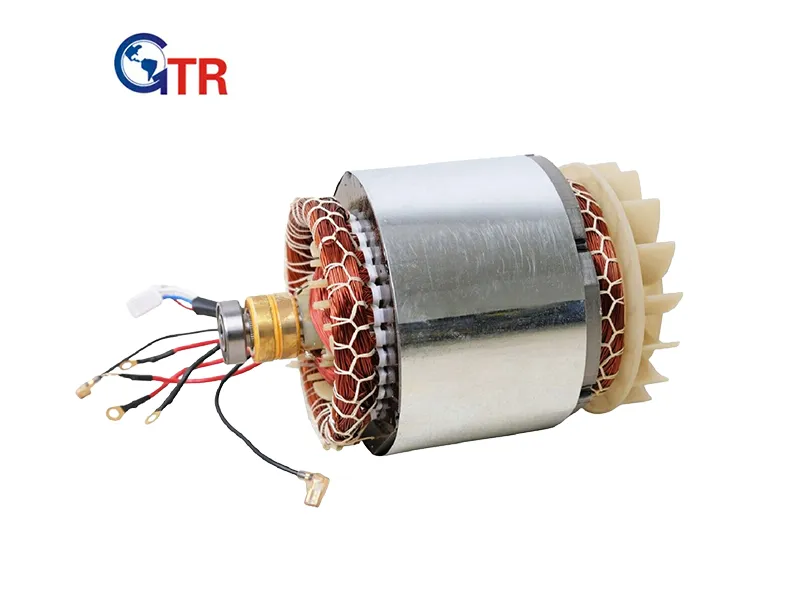

Round Wire Winding Stator
- Size Range: 140–240 mm outer diameter, adaptable for diverse motor configurations.
- High Efficiency: Optimized round wire design minimizes resistance and enhances magnetic flux.
- Flexible Winding Options: Supports both manual and machine winding for varied production needs.
- Integrated Testing System: Includes welding machine, shaping table, and comprehensive test table for quality assurance.
- Long-Term Reliability: Designed for superior insulation performance and reduced heat generation.
Technical Specifications
| Parameter | Specification |
| Material | Silicon Steel Sheet |
| Winding Type | Round Wire Winding |
| Insulation Class | Class F / H |
| Outer Diameter Range | 140mm – 240mm |
| Application Fields | Servo, Reluctance, Elevator, Hydraulic, New Energy |
| Production Method | Manual / Automatic Winding |
| Testing Equipment | Welding Machine, Shaping Table, Test Table |
| Certifications | ISO9001, IATF16949 |
| OEM/ODM Service | Available |
Customization & OEM Service
- Custom stator diameters and lamination thickness options.
- Material and insulation customization per motor requirements.
- Winding pattern and turn count optimization.
- Support for prototype and mass production projects.
- Mold design, technical consultation, and quality traceability.
Application Fields
- Servo Motors: For precise control and rapid response.
- Reluctance Motors: To achieve high torque efficiency.
- Transportation Equipment: Ensures durable and consistent performance.
- Hydraulic Systems: Provides stable motor operation under load.
- Elevator Motors: Delivers smooth, vibration-free operation.
- New Energy Motors: Supports high-efficiency energy conversion and extended lifecycle.
