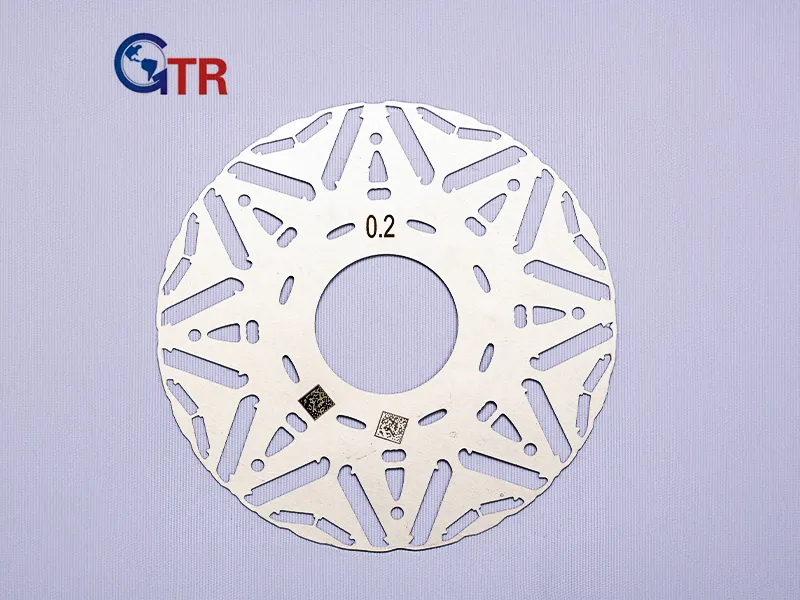

Rotor Stamping for Rail Transportation Motor
- Precision Stamping Process: Utilizes integrated automatic steering manipulators for 90-degree turning operations.
- High Dimensional Accuracy: Guarantees rotor consistency and balance for high-speed rail applications.
- Improved Magnetic Efficiency: Silicon steel sheets enhance energy conversion and reduce core loss.
- Size Range Flexibility: Covers rotor diameters from 210 mm to 400 mm to fit multiple traction motor models.
- High Mechanical Strength: Withstands high centrifugal forces and vibration during prolonged rail operation.
Technical Specifications
| Parameter | Specification |
| Rotor Outer Diameter | Ø210–400 mm |
| Material | Non-oriented Silicon Steel Grades |
| Lam Thickness | 0.35 / 0.30 / 0.27 mm (Custom) |
| Burr Height | ≤ 0.02–0.05 mm (Per Drawing) |
| Runout/Roundness | Per Project Spec (Enter Values) |
| Slot Accuracy | ±0.02–0.05 mm Typical |
| Coating/Insulation | C5/C6 or Per Customer |
| Balancing Prep | Balance Holes/Notches Optional |
| Rotor Type Options | Solid Stack, Skewed Slots, Keyway, Shaft Hole Prep |
Customization & OEM Service
- Rotor Size Range: 210 – 400 mm, customizable by project specifications.
- Material Grades: Multiple silicon-steel options for desired magnetic properties.
- Stamping Process: Options include compound, high-speed, or progressive stamping.
- Insulation Coating: Optional protective coating to reduce core loss and enhance corrosion resistance.
- Prototype & Mass Production: Support for sample development and large-scale manufacturing.
- Engineering Support: Assistance with rotor slot design, balancing, and tolerance optimization.
Application Fields
- High-speed rail traction motors
- Subway and metro traction systems
- Freight and passenger locomotives
- Electric multiple units (EMUs)
- Urban light rail transit
Production Process
Advanced Workshop
