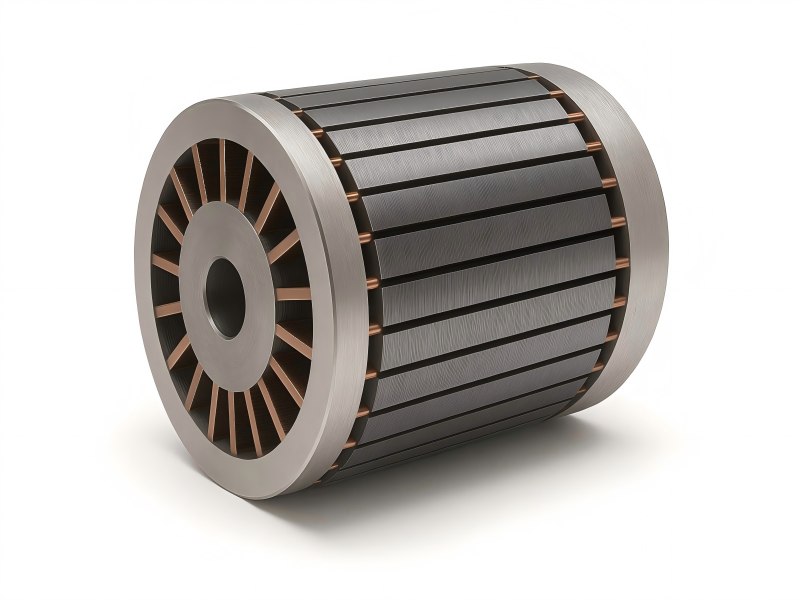

Induction Motor Squirrel Cage Rotor
- Efficient Cage Construction: Die-cast aluminum or copper bars ensure superior electrical conductivity and mechanical rigidity.
- Low Core Loss: ≤ 2.0 W/kg @ 50 Hz ensures reduced energy consumption
- Uniform Magnetic Field: Optimized bar-slot geometry provides consistent torque and slip response.
- Maintenance-Free Design: Fully enclosed cage eliminates the need for brushes or magnets.
- Long Lifespan: Under high loads, sturdy lamination stacking resists fatigue and distortion.
Technical Specifications
| Parameter | Specification |
| Material | Non-oriented Silicon Steel / Copper / Aluminum |
| Lamination Thickness | 0.1 – 0.5 mm |
| Rotor Outer Diameter | 30 – 700 mm |
| Stack Height | 10mm – 600mm Customized |
| Flux Density | ≥ 1.6 T |
| Core Loss | ≤ 2.0 W/kg @ 50 Hz |
| Operating Temperature | –40 °C ~ +200 °C |
| Assembly Type | Die-cast / Welded / Press-fit |
| Applications | Industrial Motors / Pumps / Compressors / HVAC / Machine Tools |
Customization & OEM Service
- Design rotor bar geometry for optimal torque-slip performance.
- Choose between copper or aluminum conductor cages based on efficiency needs.
- Provide precision balancing for inverter-duty and variable frequency motors.
- Offer special coatings or heat treatments for corrosive environments.
- Support prototype sampling and high-volume production.
- OEM labeling, serial tracking, and export packaging options.
Application Fields
- Industrial compressors and pumps
- Fans and HVAC blowers
- Conveyors, mixers, and processing equipment
- Machine tools and automation drives
- Elevators and hoists
