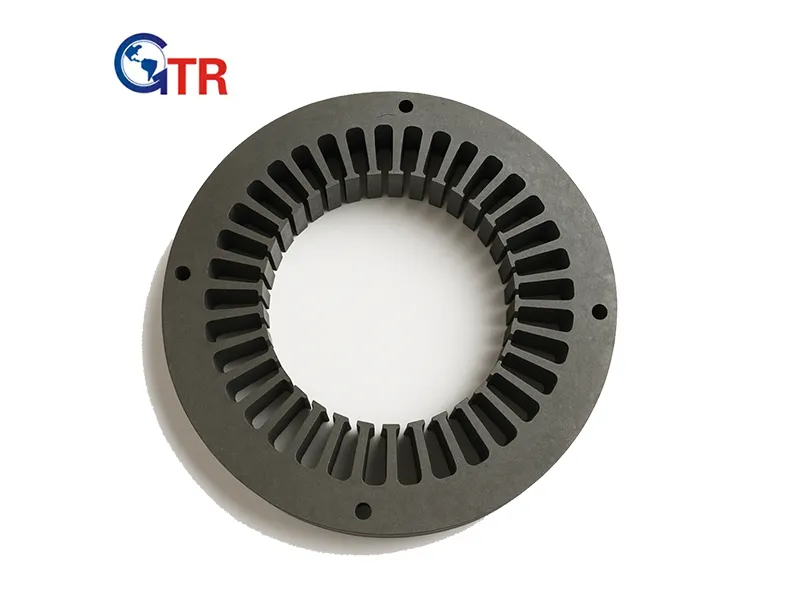

Generator Stator Laminations
- High Efficiency: Reduces magnetic loss and enhances generator output.
- Precision Stamping: Tight tolerances guarantee uniform stacking and insulation.
- Material Flexibility: Silicon steel, cobalt, and nickel alloys available.
- Thermal Stability: Designed for high-temperature and continuous-duty operation.
- Size Range: Outer diameter 180 – 2500 mm; thickness 0.2 – 1.0 mm.
Technical Specifications
| Parameter | Specification |
| Material | Silicon Steel / Cobalt Alloy / Nickel Alloy |
| Thickness | 0.20 – 1.00 mm |
| Outer Diameter | 180–2500 mm |
| Insulation Grade | F/H |
| Core Loss (1.5 T, 50 Hz) | ≤ 1.3 W/kg |
| Process | High-speed Stamping/Laser Cutting |
| Standards | ISO 9001 / IATF 16949 Certified |
Customization & OEM Service
- Custom lamination designs per client drawings or 3D CAD models.
- Segment or full-ring laminations for small to large generators.
- Tooling developed in-house for rapid mold turnaround.
- Prototype to mass-production manufacturing support.
- Anti-rust coating and insulation film options.
Application Fields
- Power generation plants and standby generators
- Wind-turbine alternators
- Marine and locomotive generators
- Industrial backup and emergency power systems
- Hydroelectric and renewable-energy generators
