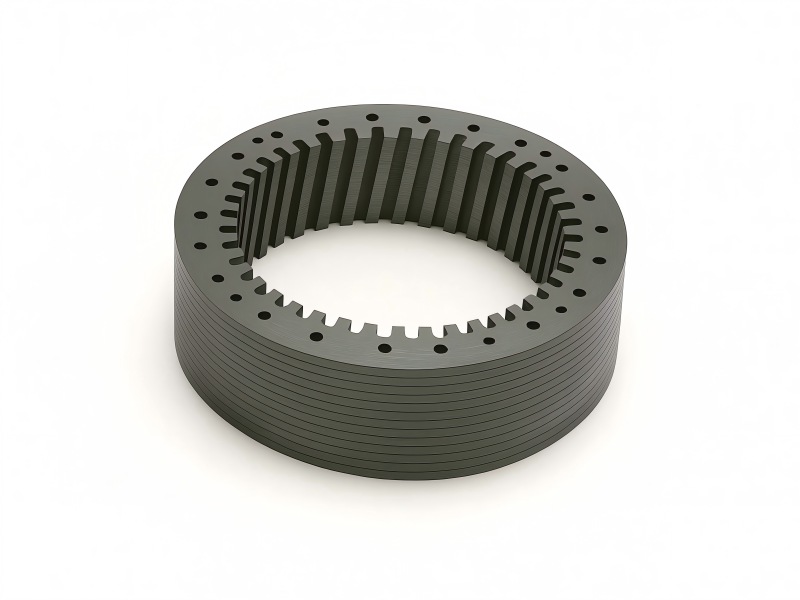

Gas Generator Core Lamination
- Low Eddy-Current Loss: Lamination thickness 0.1–0.5 mm reduces loss at high generator speeds.
- Custom Stack Design: Tailored slot geometry and cooling channel layout for turbine integration.
- Precision Tolerance: Burr ≤ 0.02 mm for tight mechanical fit and magnetic alignment.
- Excellent Thermal Stability: Withstands continuous operation up to 350 °C without deformation.
- Mechanical Strength: Cobalt or nickel alloys maintain rigidity under turbine vibration.
Technical Specifications
| Parameter | Specification |
| Material | Non-oriented Silicon Steel / Cobalt Alloy / Nickel Alloy |
| Lamination Thickness | 0.1 – 0.5 mm |
| Outer Diameter | 100 – 1,200 mm |
| Stack Height | 10 – 800 mm |
| Operating Temperature | Up to 350 °C |
| Core Loss | ≤ 2.0 W/kg @ 50 Hz |
| Frequency Range | 50 Hz – 400 Hz |
| Coating Type | C3 / C5 / High-temp Epoxy |
| Assembly Method | Interlock / Rivet / Weld / Bond |
| Applications | Gas Turbine Generators / Power Stations / Energy Conversion Systems |
Customization & OEM Service
- Material selection for specific temperature and magnetic requirements.
- Lamination thickness customization for frequency range.
- Slot, vent, and keyway design per generator model.
- Coating type selection for humidity and oxidation control.
- Prototyping, sampling, and PPAP documentation support.
- OEM labeling, export packaging, and full-traceability production.
Application Fields
- Gas turbine generators
- Industrial backup and standby power systems
- Combined heat and power (CHP) plants
- Marine and aerospace auxiliary power units
- High-efficiency distributed energy systems
