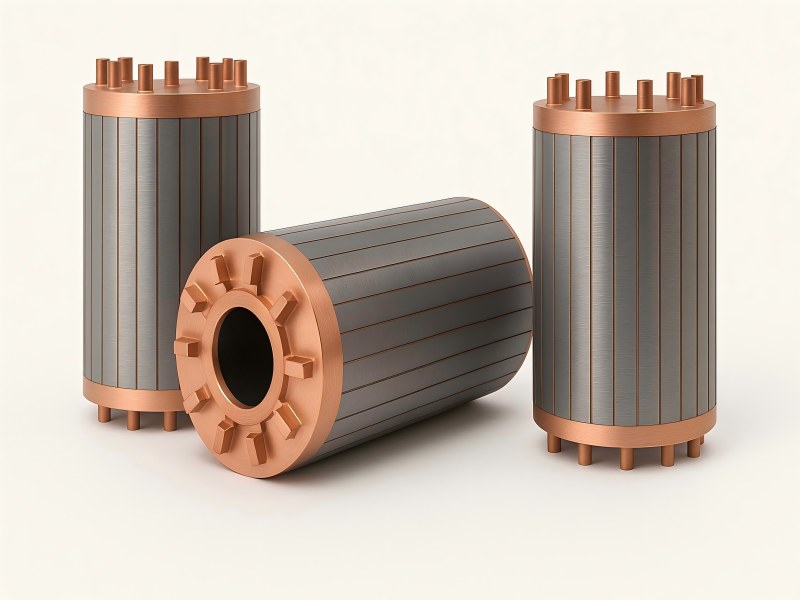

Copper Die Casted Rotor
- Superior Conductivity: Copper’s 58 MS/m conductivity boosts motor efficiency by 15–20% over aluminum rotors.
- Lower Rotor Resistance: Reduces I²R loss, improving torque output and reducing operational temperature.
- Precision Casting Quality: Vacuum or high-pressure die-casting ensures full slot fill with minimal porosity.
- Enhanced Motor Efficiency: Enables IE4 and IE5 class performance in industrial applications.
- Eco-Friendly & Recyclable: 100% copper rotor reduces lifecycle carbon footprint.
Technical Specifications
| Parameter | Specification |
| Material | Pure Copper (≥ 99.9%) / Non-oriented Silicon Steel |
| Casting Process | Vacuum / High-Pressure Die-Casting |
| Lamination Thickness | 0.3 – 0.5 mm |
| Outer Diameter | 30 – 600 mm |
| Stack Height | 10 – 500 mm |
| Electrical Conductivity | ≥ 58 MS/m |
| Core Loss | ≤ 2.0 W/kg @ 50 Hz |
| Operating Temperature | –40 °C ~ +220 °C |
| Dynamic Balance | ≤ G2.5 ISO |
| Applications | IE4/IE5 Motors / EV Traction / HVAC / Compressors / High-Speed Drives |
Customization & OEM Service
- Design rotor cage geometry for target torque and efficiency levels.
- Choose copper grades or coatings for corrosion protection and oxidation resistance.
- Support vacuum or pressure die-casting options.
- Provide custom balancing and insulation treatments.
- Offer simulation and prototyping for energy-efficient motor design.
- Deliver OEM labeling, batch tracking, and export-ready packaging.
Application Fields
- High-efficiency industrial induction motors (IE4/IE5)
- Electric vehicles and hybrid traction motors
- HVAC compressors and blower drives
- Industrial fans, pumps, and automation motors
- Precision CNC and inverter-duty drives
