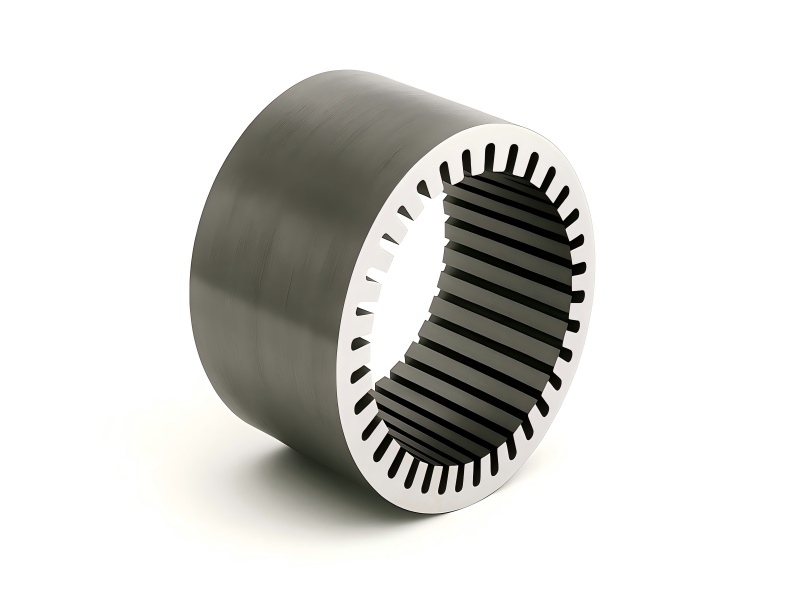

Amorphous Alloy Core For High-Speed Motor
- Ultra-Low Core Loss: ≤ 0.2 W/kg @ 1.5 T, 50 Hz; ideal for 400–20,000 Hz high-frequency use.
- Thin Ribbon Construction: 20–30 μm amorphous ribbons minimize eddy-current loss.
- Lightweight Efficiency: 25% lower density than electrical steel for reduced rotor inertia.
- Precision Balance: Engineered for vibration-free rotation above 60,000 RPM.
- High Saturation Flux Density: Up to 1.56 T enables compact, high-output motor design.
Technical Specifications
| Parameter | Specification |
| Material | Fe-based or Co-based Amorphous Alloy |
| Lamination Thickness | 0.02 – 0.03 mm |
| Magnetic Flux Density | ≤ 1.56 T |
| Core Loss | ≤ 0.2 W/kg @ 1.5 T, 50 Hz |
| Operating Frequency | 50 Hz – 20 kHz |
| Density | 7.1 g/cm³ |
| Operating Temperature | –40 °C to +200 °C |
| Outer Diameter | 20 – 600 mm |
| Stack Height | 10 – 300 mm |
| Applications | EVs / Aerospace / Compressors / Robotics / High-Speed Drives |
Customization & OEM Service
- Choose Fe-based or Co-based amorphous alloy composition.
- Define ribbon thickness and flux density range.
- Specify diameter and stack height per motor design.
- Adjust magnetic parameters for target speed or frequency.
- Provide epoxy or oxide insulation coating options.
- Include vibration and dynamic balance calibration.
- Offer prototyping, PPAP documentation, and OEM labeling.
Application Fields
- High-speed electric vehicle motors
- Aerospace turbine generators and compressors
- Industrial blowers and inverter-fed compressors
- Robotic joints and automation drives
- Medical centrifuges and precision actuators
