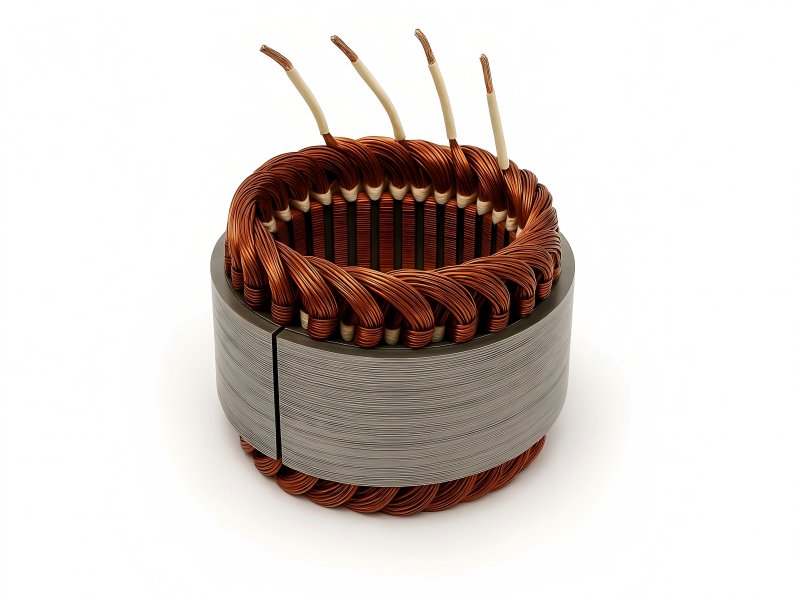

AC Motor Stator Windings
- High Conductivity: Copper windings achieve >98% conductivity for optimal current flow.
- Low Electrical Resistance: Reduces power loss and improves efficiency by 10–15%.
- Thermal Management: Vacuum varnish impregnation enhances heat dissipation and coil rigidity.
- Vibration Resistance: Laced coils withstand mechanical stress and vibration during operation.
- Custom Coil Geometry: Compatible with multi-pole, multi-slot AC motor architectures.
Technical Specifications
| Parameter | Specification |
| Winding Material | Copper/Aluminum |
| Wire Diameter | 0.1 – 3.0 mm |
| Coil Type | Random / Formed / Distributed |
| Insulation Class | F (155°C) / H (180°C) |
| Rated Voltage | 110 V – 690 V |
| Frequency | 50 Hz / 60 Hz |
| Coil Impregnation | Vacuum Pressure Impregnation (VPI) |
| Power Range | 50 W – 500 kW |
| Certified | ISO 9001, ISO 14001, IATF 16949 |
| Applications | AC Induction / Synchronous / HVAC / Compressors / Pumps |
Customization & OEM Service
- Choose copper or aluminum magnet wire.
- Define winding type (random, formed, concentric).
- Adjust number of turns, poles, and slot fill factor.
- Select insulation class and varnish type.
- Design for inverter-fed or standard AC systems.
- Provide thermal and electrical analysis support.
- Include OEM branding and export packaging.
Application Fields
- Three-phase induction motors
- Single-phase AC motors
- HVAC and fan systems
- Machine tools and automation drives
- Industrial compressors and pumps
Production Process
Advanced Workshop
