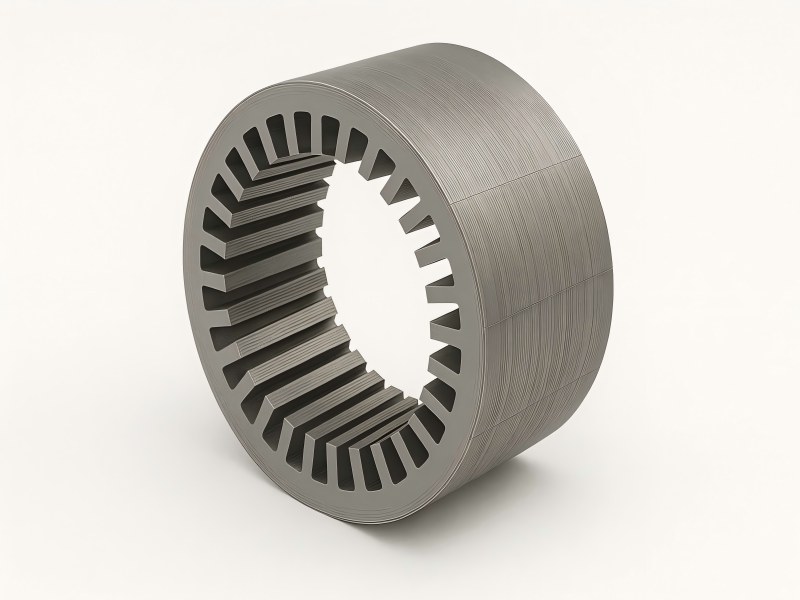

AC Motor Stator Core
- Material Options: Non-oriented silicon steel, 0.1–0.5 mm lamination thickness.
- Magnetic Efficiency: Up to 98 % flux utilization for lower core loss.
- Outer Diameter Range: 30–500 mm, customized per motor size.
- Slot Design: Radial or skewed slots to minimize noise and torque ripple.
- Winding Compatibility: Round wire, flat wire, or pin winding.
Technical Specifications
| Parameter | Specification |
| Material | Non-oriented Silicon Steel / Iron Alloy |
| Lamination Thickness | 0.1 – 0.5 mm |
| Outer Diameter | 30 – 500 mm |
| Stack Height | Customized per Design |
| Slot Type | Radial / Skewed |
| Manufacturing Method | Progressive Stamping / Laser Cutting |
| Insulation Coating | Class B / F / H |
| Tolerance | ±0.01 mm |
| Applications | AC Induction, Synchronous, and Universal Motors |
Customization & OEM Service
- Design customization based on stator diameter and lamination count.
- Support for multiple slot shapes and winding methods.
- Mold and die development from supplied drawings.
- Material grade recommendations for loss-efficiency balance.
- Prototype trial runs to mass-production transition.
- Laser engraving and serial marking options.
Application Fields
- Industrial induction motors (compressors, pumps, conveyors)
- Synchronous motors for robotics and automation
- Household appliance motors (washers, fans, air conditioners)
- Generators and alternators for power systems
