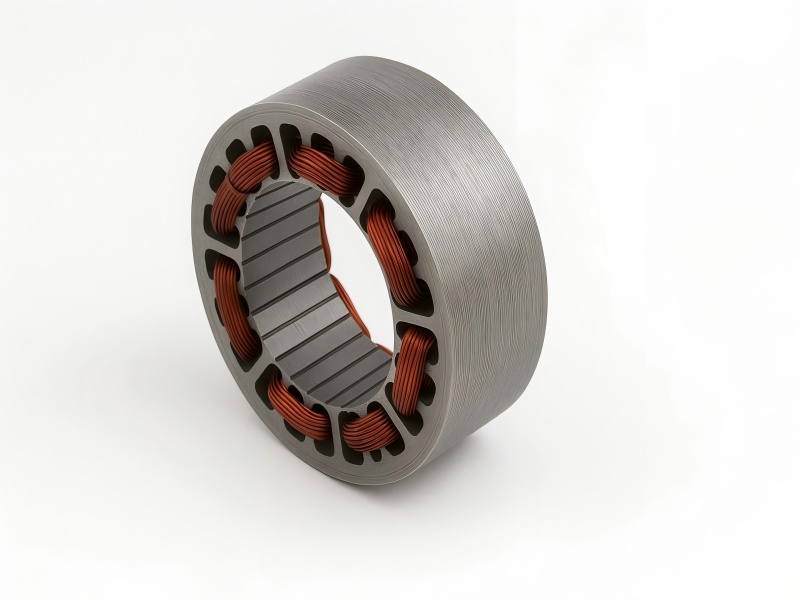

3-phase Motor Stator
- Material Options: Non-oriented silicon steel grades 35A300 – 50W470 for optimized efficiency and mechanical strength.
- Balanced Magnetic Field: Phase deviation ≤ 1° ensures smooth torque output and vibration control.
- Low Core Loss: ≤ 2.0 W/kg @ 50 Hz reduces energy consumption under continuous operation.
- High Magnetic Flux Density: ≥ 1.6 T provides strong electromagnetic coupling.
- Slot Accuracy: ± 0.01 mm ensures precise winding fit and uniform current distribution.
Technical Specifications
| Parameter | Specification |
| Material | Non-oriented Silicon Steel / Cobalt Alloy |
| Lamination Thickness | 0.2 – 0.5 mm |
| Outer Diameter Range | 60 – 1000 mm |
| Stack Height | Customizable |
| Core Loss | ≤ 2.0 W/kg @ 50 Hz |
| Flux Density | ≥ 1.6 T |
| Frequency Range | 50 – 400 Hz |
| Stacking Method | Interlocked / Bonded / Welded |
| Operating Temperature | –40 °C ~ +180 °C |
| Applications | 3-Phase AC Motors / Synchronous Motors / Compressors / Industrial Drives |
Customization & OEM Service
- Design stator size, bore diameter, and slot shape for target torque-speed ratio.
- Select lamination material and thickness for efficiency optimization.
- Choose between welded, bonded, or interlocked stacking.
- Support single or multi-layer winding configurations.
- Provide simulation, prototyping, and mass production options.
- Offer OEM branding, engraving, and export packaging.
Application Fields
- Industrial pumps, compressors, and conveyors
- HVAC and refrigeration systems
- CNC machinery and automation equipment
- Power generators and alternators
- Electric vehicle traction systems
